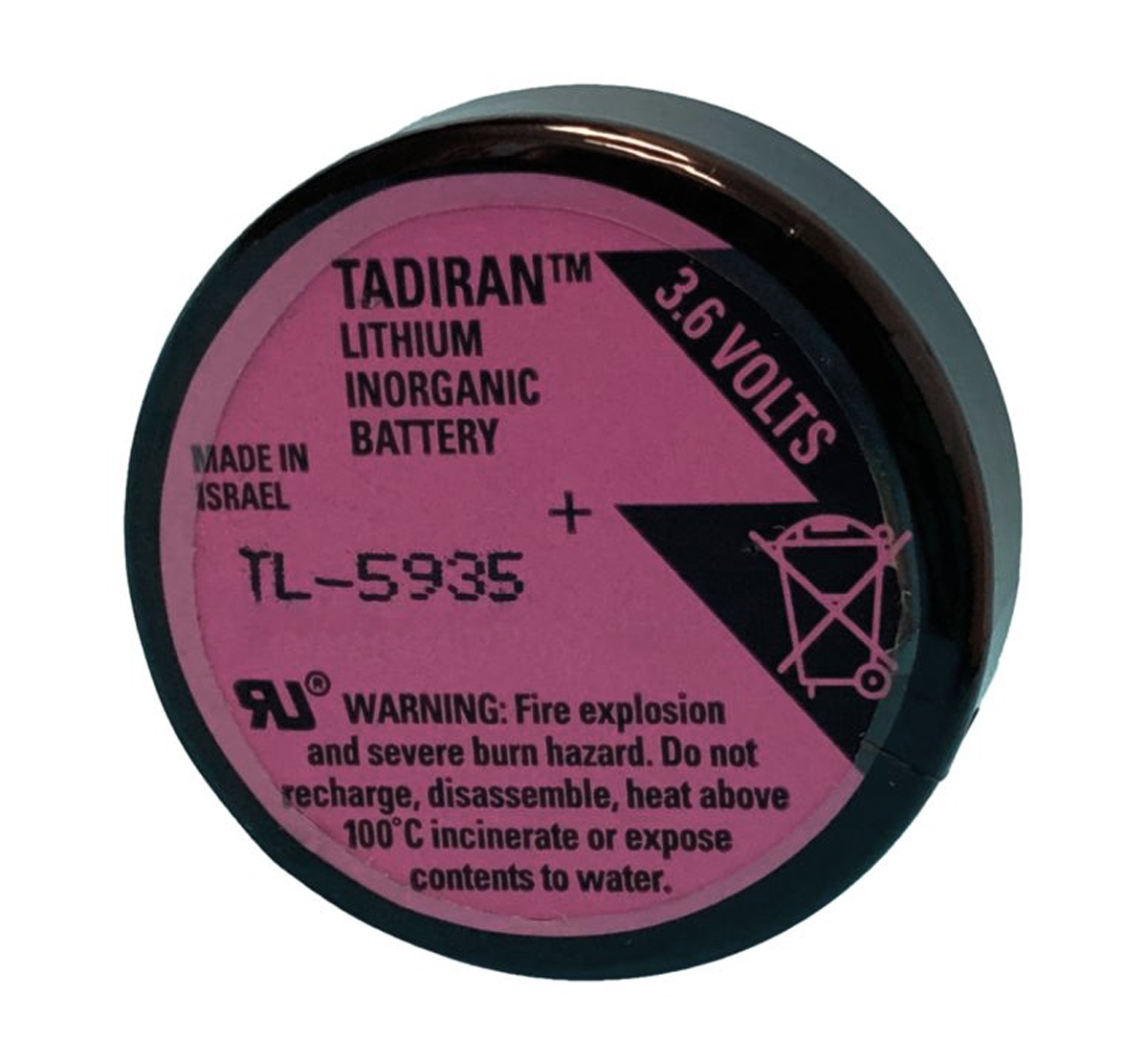

TADIRAN TL5935 3.6V LITHIUM WAFER CELL - 3 PIN PCB MOUNT
This is a direct replacement for the Tadiran TL-5135 which is no longer available
Features
- High quality Energy+ Lithium battery
- Single 1/6 D size wafer cell - solders to board or plugs in to a socket
- Low self discharge rate for up to 10 year shelf life
- Stable voltage and broad temperature range (-40° to +85°C)
Specifications
- Brand: Tadiran
- Part Number: TL5935
- Type: Lithium Battery Pack
- Voltage: 3.6V
- Capacity: 1700mAh
- Size mm: 32.5mm diameter, 10mm height
- Contacts: 3 PC Pins
- Warranty: 12 Months Warranty
TADIRAN TL5935 3.6V LITHIUM WAFER CELL - 3 PIN PCB MOUNT
Replaces the following part numbers
1770-HMA
1771-HMA
94048301
TL-5135/P
TL5135
TL5135/P
TADIRAN TL5935 3.6V LITHIUM WAFER CELL - 3 PIN PCB MOUNT
To download the product MSDS click icon
DELIVERY INFORMATION
All prices include free mainland UK delivery - other than certain remote areas that may attract a delivery surcharge.
All Royal Mail deliveries are sent by first class post and are free to all UK postcodes.
Most UPS deliveries are free however remote areas may have a delivery surcharge; these are generally the Scottish Highlands and Islands, most off shore islands and a few other remote or inaccessible parts of the UK.
Certain products are unavailable for post/courier delivery due to restrictions on shipping hazardous substances; these will be available for collection only or in most instances can be shipped via specialist courier or pallet service at an additional charge.
If you have any delivery problems, require technical assistance or would simply like to speak to a human being then please call us.
For further delivery information click here
TADIRAN TL5935 3.6V LITHIUM WAFER CELL - 3 PIN PCB MOUNT
Will this replace the Tadiran TL-5135?
Yes - the TL-5935 is a direct replacement for the no longer available TL-5135
